Oil-Jacks HOME > Cylinders/Tools > Oil-Jacks (

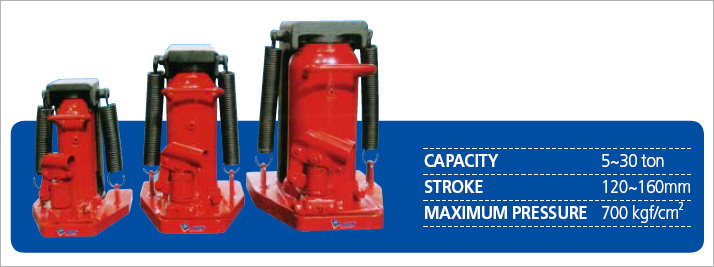

toe jack hydraulic

)

toe jack hydraulic

It is used to lift loads in the extremely narrow place.
For use in very confined work areas

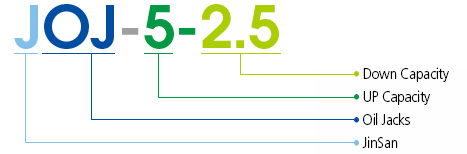

- How to understand Model No.

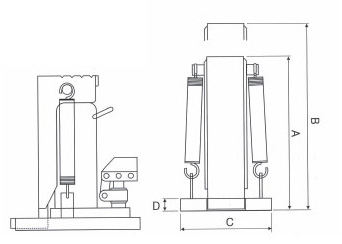

* Specification
MODEL Cylinder Capacity Stroke
(mm)		 Retracted
height		 Extended
height		 Base
Dimension		 Base
Thickness		 Weight
(kgs)
(Up) (Down) A B C D
JOJ-52.5 5 2.5 120 243 363 170 X 230 19 7.2
JOJ-105 10 5 150 290 440 188 X 260 22 13.5
JOJ-2010 20 10 160 333 493 245 X 280 28 24.5
JOJ-3015 30 15 160 353 513 273 X 308 32 39.5
