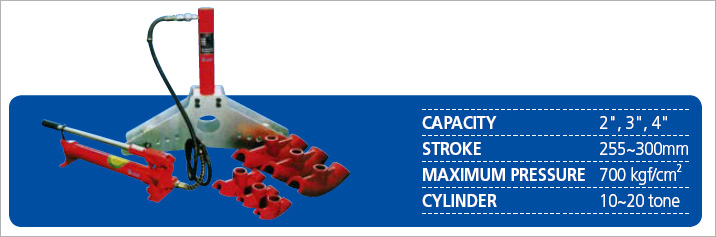

| The pipe bender is a portable equipment designed to bend accurately 1/2”~4” steel pipes and gas pipes in the field. It can be used anywhere and the ram provides 10ton~20ton of power to bend pipes easily. |

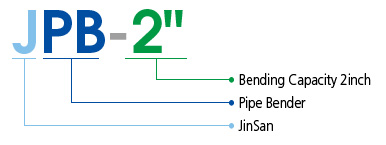

| - How to understand Model No. |
 |
| |
| * Specification |
|
|
| Shoe Size |
KS Pipe |
mm
(A) |
Inch
(B) |
Out-Dia
(mm) |
In-Dia
(mm) |
Thickness
(mm) |
Radius
(mm) |
| 15 |
1/2 |
21.7 |
16.1 |
2.8 |
60 |
| 20 |
3/4 |
27.2 |
21.6 |
2.8 |
80 |
| 25 |
1 |
34.0 |
27.6 |
3.2 |
100 |
| 32 |
11/4 |
42.7 |
35.7 |
3.5 |
130 |
| 40 |
11.2 |
48.6 |
41.6 |
3.5 |
160 |
| 50 |
2 |
60.5 |
52.9 |
3.8 |
220 |
| 65 |
21/2 |
76.3 |
67.9 |
4.2 |
320 |
| 80 |
3 |
89.1 |
80.7 |
4.2 |
425 |
| 90 |
31.2 |
101.6 |
93.2 |
4.2 |
550 |
| 100 |
4 |
114.3 |
105.3 |
4.5 |
600 |
|
|
| |
|
| Shoe Size |
GS Pipe |
mm
(A) |
Inch
(B) |
Out-Dia
(mm) |
In-Dia
(mm) |
Thickness
(mm) |
Radius
(mm) |
| 16 |
1/2 |
21.0 |
16.4 |
2.3 |
75 |
| 22 |
3/4 |
26.5 |
21.9 |
23 |
90 |
| 28 |
1 |
33.3 |
28.3 |
2.5 |
130 |
| 36 |
11/4 |
41.9 |
42.8 |
2.5 |
195 |
| 42 |
11/2 |
47.8 |
42.8 |
2.5 |
230 |
| 54 |
2 |
59.6 |
54.0 |
2.8 |
270 |
| 70 |
21/2 |
75.2 |
69.6 |
2.8 |
450 |
| 82 |
3 |
87.9 |
82.3 |
2.8 |
500 |
| 92 |
31/2 |
100.7 |
93.7 |
3.5 |
500 |
| 104 |
4 |
113.4 |
106.4 |
3.5 |
680 |
|
|
| |
|
| MODEL |
Max.
Capacity
(inch) |
Max. Wall
Thckness
(mm) |
Max. Bending
Angle( ° ) |
Dimension
(mm) |
Bending
Shoes
(Qt'y) |
Cylinder
Capacity
(tons) |
Weight
(kgs) |
| JPB-2 |
2"(50A) |
3.8 |
90 |
700 X 700 X 250 |
1/2"-2" |
10 |
40 |
| JPB-3 |
3"(80A) |
4.5 |
90 |
850 X 1050 X 300 |
3/4"-3" |
150 |
60 |
| JPB-4 |
4"(100A) |
4.9 |
90 |
1150 X 1300 X 300 |
11/4"-4" |
20 |
170 |
|
| |
