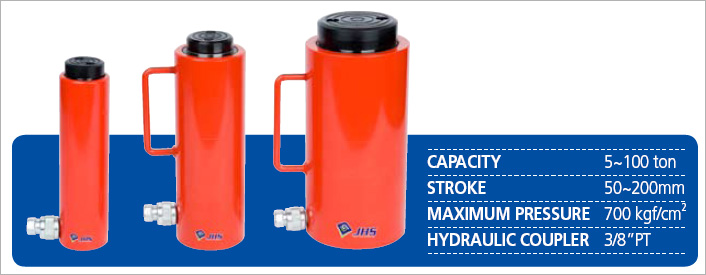

Single-Acting HOME > Cylinders/Tools > Single-Acting


Since the single acting ram ascends with hydraulic pressure and descends with a spring, it can be for small rams.
- Single-acting RAM rises by oil pressure when rise and I can use conveniently in small RAM that descend by type that spring returns when descend.


* Specification
MODEL Cylinder
Capacity
(tons)		 Stroke
(mm)		 Cylinder
Effective Area
(cm2)		 Oil
Capacity
(cc)		 Retracted
height		 Extended
height		 Cylinder
Out Dia		 Cylinder
Bore Dia		 Outside
Dia		 Base to
Inlet
port		 Weight
(kgs)

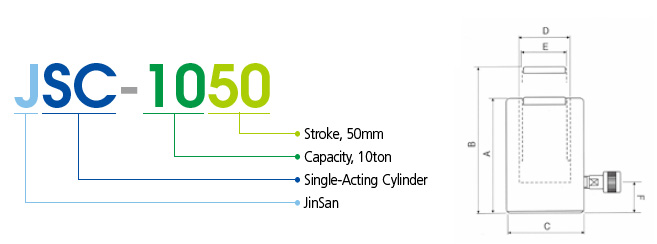

A B C D E F
JSC-1050 10 50 16 79 146 196 62 45 38 19 2.5
JSC-10100 100 159 196 296 3.5
JSC-10150 150 238 246 396 4.5
JSC-2050 20 50 33 166 157 207 88 65 58 25 7
JSC-20100 100 332 207 307 9.5
JSC-20150 150 498 257 407 11
JSC-3050 30 50 44 220 167 217 1105 75 68 25 10
JSC-30100 100 440 217 317 12.5
JSC-30150 150 660 267 417 15
JSC-5050 50 50 71 355 192 242 128 95 85 33 13
JSC-50100 100 710 242 342 16
JSC-50150 150 1070 292 442 19
JSC-10050 100 50 143 715 715 268 185 135 105 41 18
JSC-100100 100 1430 1430 368 38
JSC-100150 150 2146 2146 468 50
