Double-Acting	HOME > Cylinders/Tools > Double-Acting

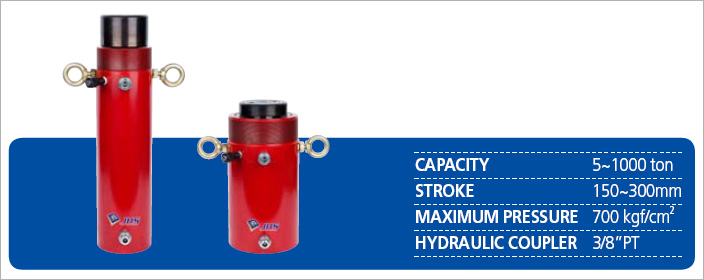

As the hydraulic pressure inlet is separated, it operates in the double acting mode. It is suitable for large rams.

- Oil pressure filler opening is detached up and down and operates by double-acting.
- It is type that is suitable to large size RAM.

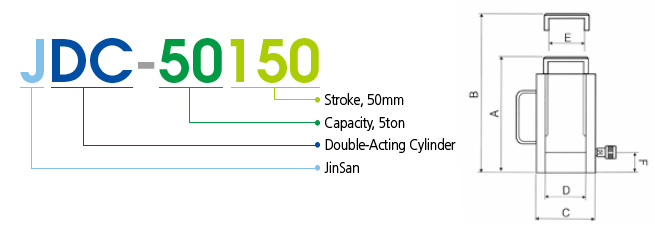

- How to understand Model No.

* Specification


MODEL	Cylinder Capacity (tons)	Stroke (mm)	Cylinder Effective Area (cm²)	Oil Capacity (cc)	Retracted height	Extended height	Cylinder Out Dia	Cylinder Bore Dia	Outside Dia	Base to Inlet port	Weight (kgs)
					A	B	C	D	E	F
JDC-50150	50	150	70.8	1062	337	487	132	95	60	35	30
JDC-50300		300		2124	487	787					50
JDC-100150	100	150	143	2145	355	505	185	135	95	40	64
JDC-100300		300		4290	505	805					83
JDC-150150	150	150	213.7	3205	386	536	215	165	125	49	104
JDC-150300		300		6410	536	836					136
JDC-200150	200	150	283.3	4250	399	549	247	190	160	60	129
JDC-200300		300		8500	549	849					169
JDC-300150	300	150	456.2	6843	450	600	310	241	197	65	252
JDC-300300		300		13686	600	900					299
JDC-400150	400	150	559.9	8399	480	630	350	267	216	70	342
JDC-400300		300		16797	630	930					436
JDC-500150	500	150	731.7	10967	525	675	400	305	248	80	493
JDC-500300		300		21951	675	975					616
JDC-600150	600	150	85438	12822	545	695	430	330	267	85	586
JDC-600300		300		25644	695	995					722
JDC-800150	800	150	1176.9	17654	595	745	505	387	317	100	885
JDC-800300		300		29423	745	1045					1082
JDC-1000150	1000	150	1466.4	21996	635	785	560	432	343	110	1168
JDC-1000300		300		43992	785	1085					1400
