Shorty
HOME > Cylinders/Tools > Shorty

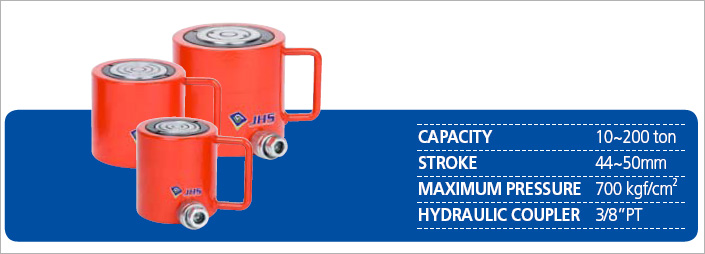

The short ram returns by the spring and is suitable for narrow space.
- Compact, flat design for use where there where other cylinders will not fit.

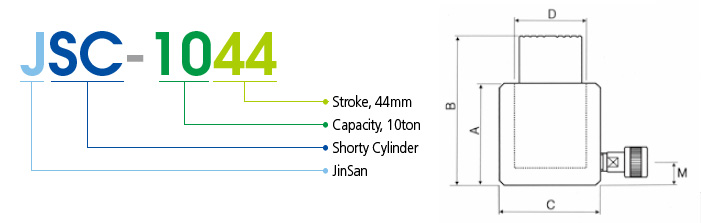

- How to understand Model No.
* Specification
MODEL
Cylinder
Capacity
(tons)
Stroke
(mm)
Cylinder
Effective Area
(cm
2
)
Oil
Capacity
(cc)
Retracted
height
Extended
height
Cylinder
Out Dia
Cylinder
Bore Dia
Base to
Inlet port
Weight
(kgs)
A
B
C
D
E
JSC-1044
10
44
15.2
66
101
145
68
44
18
3.2
JSC-2044
20
44
28.2
124
103
147
87
60
18
5.9
JSC-3044
30
44
44.2
194
103
147
105
75
18
6
JSC-5050
50
50
70.8
354
111
161
128
95
18
15
JSC-10050
100
50
143
715
137
187
178
135
20
20.4
JSC-15050
150
50
213
1068
192
242
208
165
43
39
JSC-20050
200
50
268.6
1343
193
243
235
185
50
61
