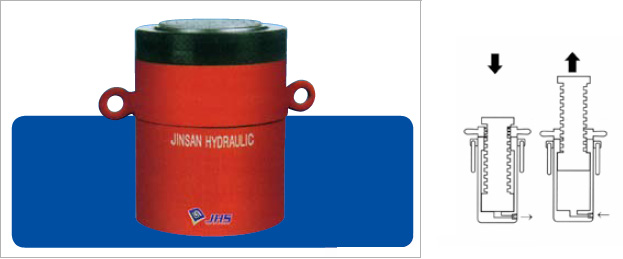

Look Nut HOME > Cylinders/Tools > Look Nut

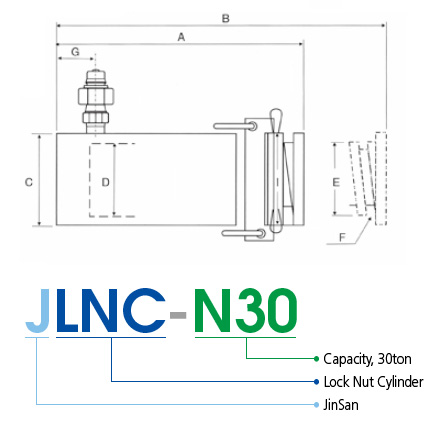

* Specification
MODEL Cylinder
Capacity
(tons)		 Stroke
(mm)		 Retracted
height		 Extended
height		 Cylinder
Out Dia		 Cylinder
Bore Dia		 Rod Dia Rod
Screw		 Base to
Inlet port
A B C D E F G
JLNC-N30 30 200 335 535 105 75 68 68P6 30
JLNC-N50 50 200 375 575 128 95 80 80P6 40
JLNC-N100 100 230 410 640 185 135 110 110P6 39
JLNC-N150 150 230 430 660 225 165 140 140P6 52
JLNC-N200 200 20 440 670 255 195 170 170P6 50
