Model jhp-3b pump parts list	HOME > Cylinders/Tools > Model jhp-3b pump parts list

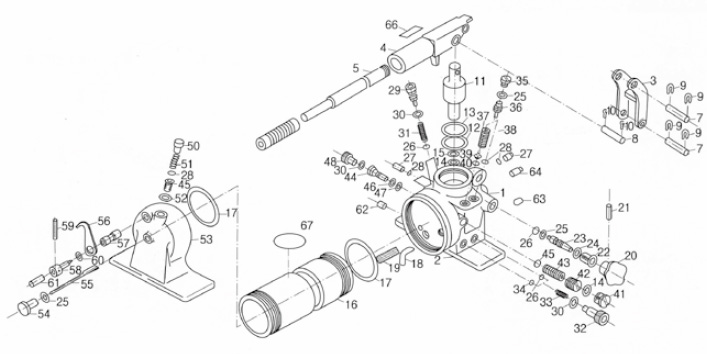

* Specification


NO.	Description	Q'ty	NO.	Description	Q'ty
1	Pump Body		35	Set Screw
2	Body Bracket		36	Spring Discharge Screw
3	Leuer Suppert		37	High Pressure Sprirng
4	Leuer Bedy		38	Low Pressure Sprirng
5	Lever		39	Ball Disc
6	Lever GriP		40	Steel Ball
7	Pin		41	Set Screw
8	Pin		42	Discharge Screw
9	Snap Ring		43	Lew Pressure Spring
10	Spring Pin		44	Low Pressure Sprirng
11	Piston		45	Steel Ball
12	O Ring		46	O Ring
13	Back-up Ring		47	Back-up Ring
14	O RingBack-up		48	Bolt
15	Back-up Ring		49	Air Valve Bolt
16	Oil Tank		50	Air Valve
17	O Ring		51	Spring
18	Drain Pipe		52	O Ring
19	Strainer		53	Right Leg
20	Handle		54	Screw
21	Sring Pin		55	Oil Level Gauge
22	Set Screw For Discharge Varve Rod		56	Lever Hook
23	Discharge Valve Rod		57	Notched Pin
24	O Ring		58	Air Valve
25	O Ring		59	Spring Pin
26	Steel Ball		60	O Ring
27	Set Screw		61	Pin
28	Steel Ball		62	Bolt
29	Bolt		63	Bolt
30	Washer		64	Set Screw
31	Spring Pin		65	Set Pin
32	Bolt		66	Name Plate
33	Spring		67	Name Plate
34	Steel Ball

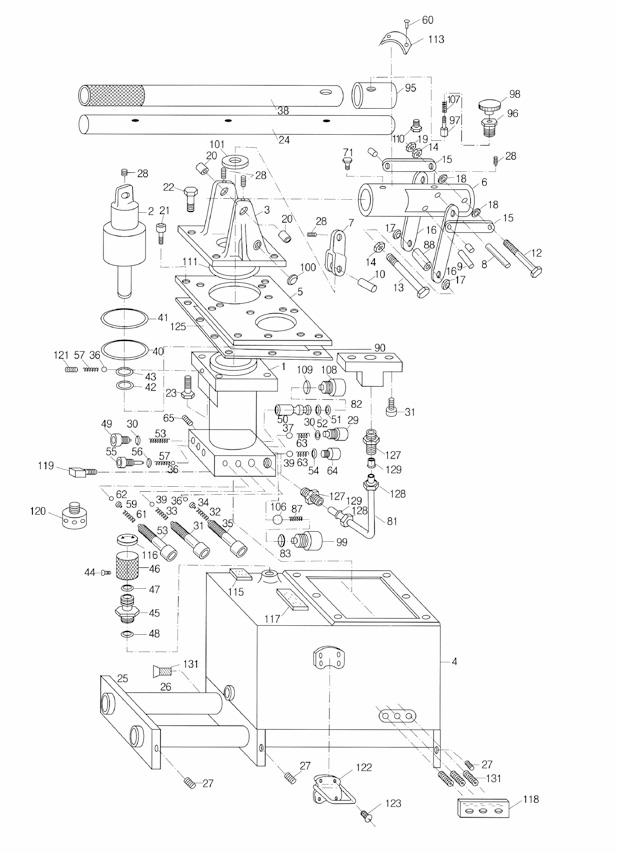

* Specification


NO.	Description	Q'ty	NO.	Description	Q'ty
1	Pump body		52	Back-up Ring(Unloader)
2	Piston		53	Spring(Unloader)
3	Supporter		54	Copper Washer(Dischange Chock)
4	Reservoir		55	Screw(Unloader Chock)
5	Supporter Board		56	Copper Washer(Unloader Chock)
6	Lever Body		57	Spring(Unloader Chock)
7	Piston Crank		58	Control Wrench Bolt
8	Lever Pin		59	Ball Disc
9	˝		60	Piss Bolt
10	˝		61	Spring
11	˝		62	Steel Ball
12	Heragon Bolt		63	Spring
13	Hexagon Bolt		64	Socket Cap Screw
14	Hexagon Nut		65	Set Screw
15	Lover Supporter		76	O Ring
16	˝		81	Coupling Pipe
17	Washer		87	Spring
18			88	Pin(Lever Cranic)
19	Hexagon Nut		89	Copper Washer
20	Washer(Lever Pin)		90	Coupling Board
21	Wrench Bolt		91	Socket Cap Screw
22	Hexagon Bolt		95	Coupling Pipe(Lever)
23	˝		96	Fixing Bolt
24	Hever		97	Wrench Bolt
25	Quadrangle Board		98	Fixing Nut
26	Quadrangle Pipe		99	Socket Cap Screw
27	Set Screw		100	Washer(Sapporter)
28	Set Screw(Supporter)		101	˝
29	Socket Cap Screw		105	Steel Ball(9.5Ø)
30	Copper Washer		107	Spring(Lever)
31	Low Pressure Control Wrench Bolt		108	Socket Cap Screw
32	High Pressure Spring		109	Copper Washer
33	Low Pressure Spring		110	Hexagon Bolt
34	Bolt Disc		111	O Ring(Supporter)
35	High Pressure Control Wrench Bolt		113	Name Plate
36	Steel Ball(5.5Ø)		114	˝
37	Steel Ball(7.9Ø)		115	˝ (Air valve)
38	Support Lever		116	˝
39	Steel ball(7.1Ø)		117	˝
40	O Ring(Low Pressure)		118	˝ (Pin)
41	Back-up Ring		119	Strainer Nipple
42	O Ring(High Pressure)		120	Strainer Nipple
43	Back-up Ring		121	Set Screw(Spring)
44	Piss Bolt		122	Handle
45	Air Valve Screw		123	Piss Bolt
46	Air Valve Nut		125	Packing
47	O Ring(Air Valve)		127	Union(9Ø)
48	O Ring(Air Valve)		128	Union Nut
49	Screw(Unloader)		129	Ring(9Ø)
50	Unloader Pin		131	Set Screw(3/8PT)
