Single-Acting Ceter Holers HOME > Cylinders/Tools > Single-Acting Ceter Holers
(

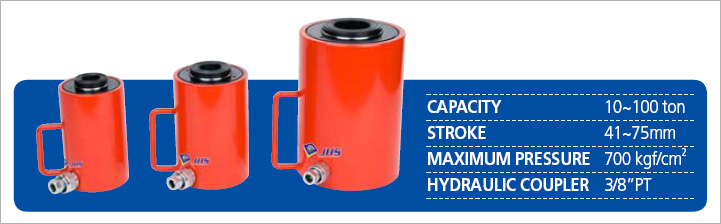

hollow cylinders

)

hollow cylinders


Thanks to holes in the ram, it can be used for hydraulic punches, grip puller tension testers, PC testers, and PC equipment.

- I can use and so on by various devices for hydraulic pressure punch grip pellers tension tester PC cact us because there is hole RAM middle.

hollow cylinders

* Specification
MODEL Cylinder
Capacity
(tons)		 Stroke
(mm)		 Cylinder
Effective Area
(cm2)		 Oil
Capacity
(cc)		 Retracted
height		 Extended
height		 Cylinder
Out Dia		 Cylinder
Bore Dia		 Weight
(kgs)

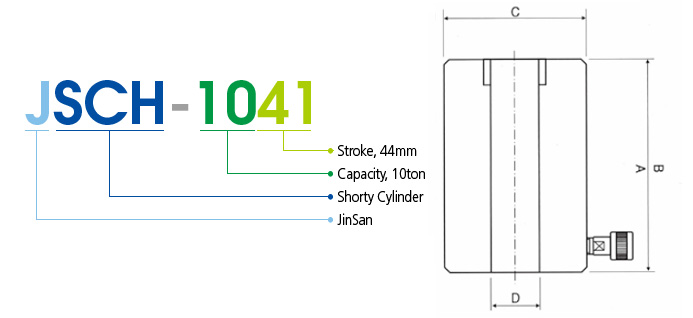

A B C D
JSCH-1042 10 42 17.9 74 122 164 69 20 2.8
JSCH-2050 20 50 41.8 158.4 168 218 98 23 5
JSCH-3063 30 63 47.7 300.4 179 242 114 33.3 10.9
JSCH-5075 50 75 84.2 631 237 312 159 54 28.1
JSCH-10075 100 75 142.9 1071 255 330 212 79 52.5
