Low Profile
HOME > Cylinders/Tools > Low Profile (

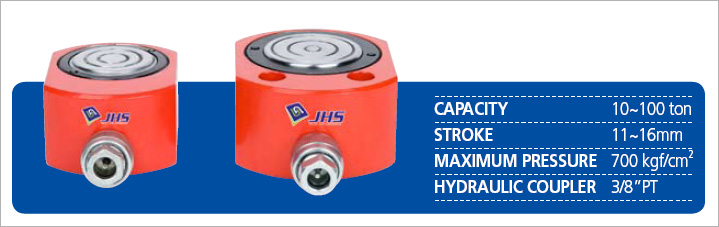

pancake hydraulic cylinders
)
The profile cylinder returns by the spring. It is suitable for narrow space.
- It is profile cylinder silver spring return method.
- Work is a convenient RAM in where crawl space or windage is small.

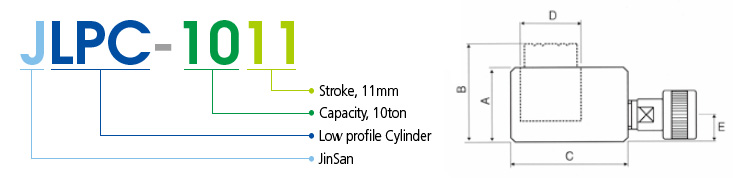

* Specification
MODEL
Cylinder
Capacity
(tons)
Stroke
(mm)
Cylinder
Effective Area
(cm
2
)
Oil
Capacity
(cc)
Retracted
height
Extended
height
Cylinder
Out Dia
Cylinder
Bore Dia
Base to
Inlet port
Weight
(kgs)
A
B
C
D
E
JLPC-1011
10
11
15.9
17
42
53
82
45
14
1.6
JLPC-2011
20
11
28.2
31
51
62
101
60
16
2.9
JLPC-3013
30
13
41.8
54
58
71
117
73
19
3.9
JLPC-5016
50
16
63.5
101
66
82
139
90
19
6.5
JLPC-7516
75
16
103.8
166
79
95
165
115
19
11
JLPC-10016
100
16
122
196
85
101
178
125
19
14
JLPC-15016
150
16
200
321
100
116
215
160
24
25
